Shear Flow

BioFlux Plates

No Messy Tubes, No Time Consuming Washing or Sterilization

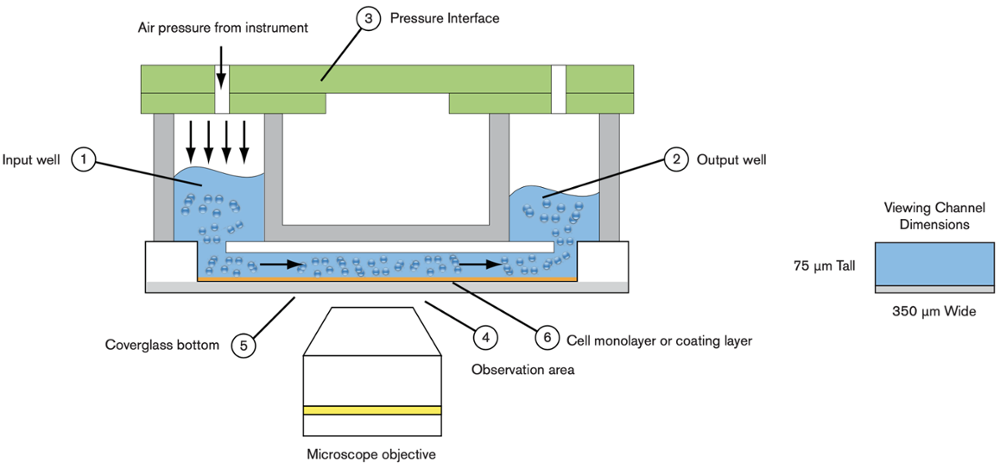

BioFlux plates are arrays of microfluidic flow cells embedded at the bottom of SBS-format well plates. The BioFlux pressure interface couples to the top of the well plate and applies a controlled pneumatic pressure from the control instrument to the top of the wells. This drives the fluid through the channels at a user-defined flow rate. Due to the positive air pressure delivered by the interface, we remove the need to have fluid-filled tubing delivering the fluids. Instead, the whole experiment happens in the plate. There’s no cleanup necessary – no messy tubes, no time consuming washing or scrubbing – just dispose of the well plate.

BioFlux plates come in 6-well, 24-well, and 48-well formats. Each plate format requires its own interface, and they are available separately if not purchased originally with the system.

BioFlux Plate Design
Request a Quote
Purchase Online
vline gray

Plate Specifications

Standard Glass Bottom

The standard cover slip glass bottom is wonderful for high resolution live cell imaging. The bottom of the channels are comprised of 170 µm coverslip glass which make them compatible with brightfield, phase, fluorescence and confocal microscopy.

GLASSBOTTOM
silicone

All Silicone Bottom

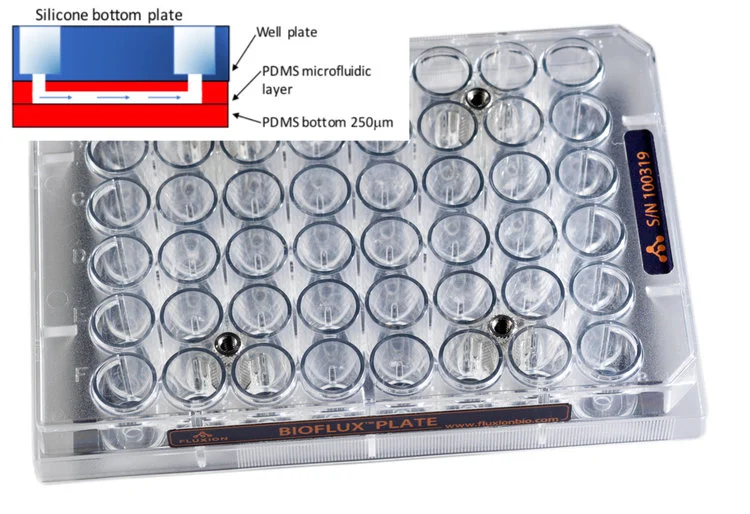

Polydimexylsiloxane (PDMS) is a key component of many medical devices due to superior biocompatibility and material stability. The formation of bacterial biofilms on these surfaces is an active area of research, due to the high importance of biofilms in medical device infections. The silicone bottom plates feature all-PDMS flow channels to address this need, and enable a full range of experimental protocols utilizing silicone substrates. Catheter infections can be modeled using primary media including human urine with BioFlux PDMS bottom plates. Requires a 48-well BioFlux interface for operation.

Custom Bottom Plate

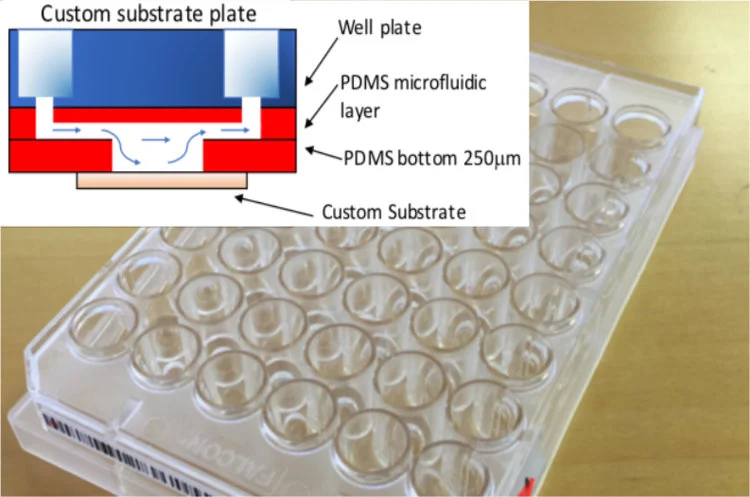

Custom substrate plates feature the ability to add any material to the bottom of microfluidic flow chambers, and enable a full range of experimental protocols utilizing custom substrates. Schematic comparison of the traditional BioFlux plates (A) and the new custom substrate plate (B). While the traditional plates were developed to ensure immediate compatibility with a majority of imaging systems, the new consumables maintain optical access while providing a the user with a fully customizable growth surface. Requires a 48-well BioFlux interface for operation.
image asset 1

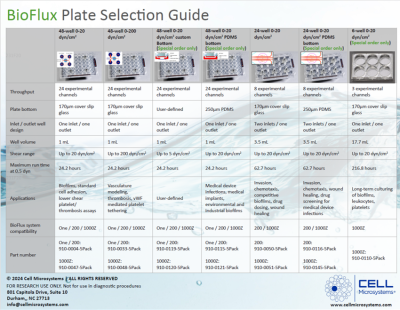

Plates for the BioFlux shear flow systems are available in a wide variety of well sizes, flow rate capabilities, and substrate coatings.  Download the BioFlux plate selection guide to find the perfect plate for your experimental needs.

BioFlux Plate Selection Guide
BioFlux plate selection guide thumbnail
vline gray

Plate Formats

48 low Shear

48-well Low Shear Plate

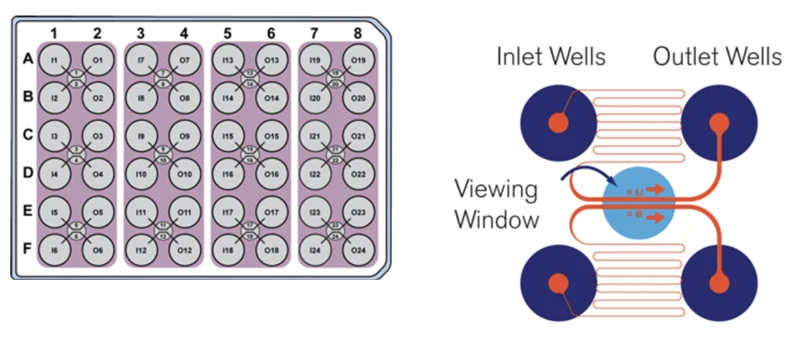

The 48-well low shear plate can run up to 20 dyne/cm². With one inlet well and one outlet well per experimental channel, up to 24 assays can be run on one plate. The high number of experimental channels makes it ideally suited for testing larger sets of conditions, such as compound screening or genetic variants. Requires a 48-well BioFlux interface for operation.

48-well High Shear Plate

The 48-well high shear plate is excellent for experiments that need higher shear flow. Again, each experimental channel has one inlet and one outlet, making 24 assays on one plate. The channels have been designed to reach a maximum wall shear stress of 200 dyne/cm² making them suited for platelet adhesion and aggregation assays, as well as other high shear applications. Requires a 48-well interface for operation.

cleanshot 2021 12 28 at 21 03 17
24wellformat
cleanshot 2021 12 28 at 21 03 31

24-well Low Shear Plate

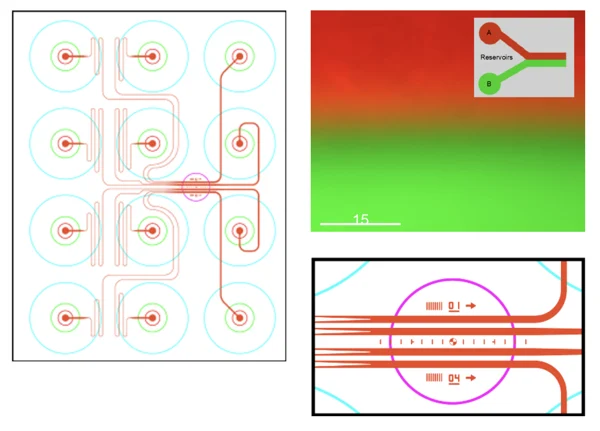

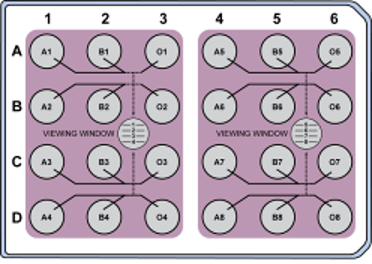

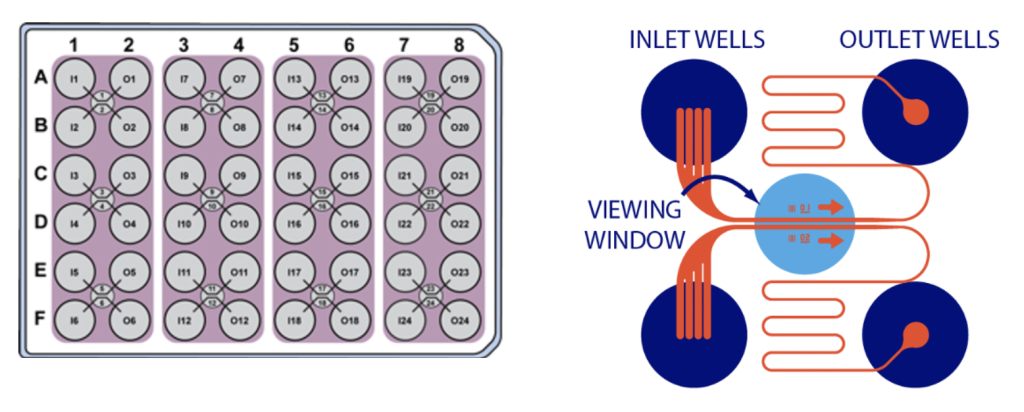

The 24-well plate format is a low shear plate (up to 20 dyne/cm²). It features 8 experimental channels, each with two input wells that are controlled independently. Both inlet wells can also run simultaneously, creating two parallel liquid streams with a gradient at the juncture. Ideally suited for migration/invasion, wound healing, chemotactic gradients, compound screening. Requires a 24-well BioFlux interface for operation.

6 Well Low Shear Plate

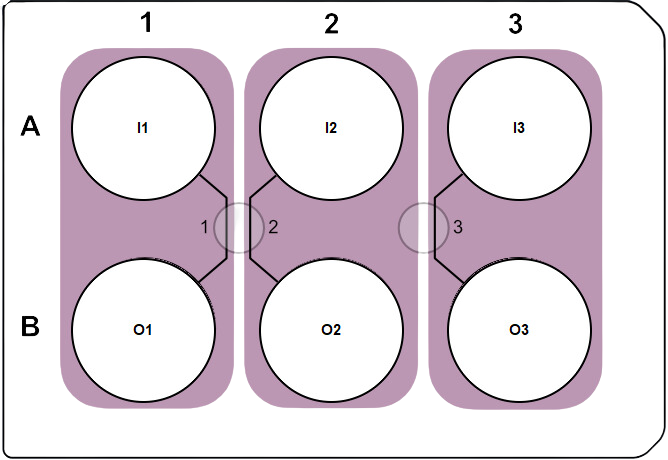

With shear flow up to 60 dyne/cm² and 3 assays per plate, this format is suitable for long-term culturing experiments that don’t need high throughput. Requires a 6-well BioFlux interface for operation (BioFlux 1000HT interface only).

BioFlux 6 well plate
vline gray

BioFlux 200+

910 0004

48-well Low Shear Plate (0-20 dyne/cm²)

PART # 910-0004
Used for biofilms, cell adhesion experiments and lower shear platelet/thrombosis assays. They are shipped in a pack of 5.
910 0033

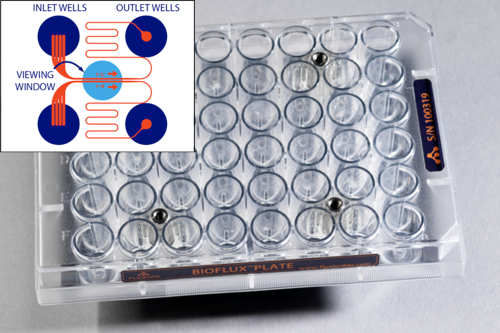

48-well High Shear Plate (0-200 dyne/cm²)

PART # 910-0033
Used for modeling pathological events in the vasculature, ideal for thrombosis and vWF mediated platelet tethering. They are shipped in a pack of 5.
910 0050B

48-well All Silicone Flow Channel Plate (0-20 dyne/cm²)
(Special Order Only - contact Sales for lead time)

PART # 910-0115
Research medical device infections, dental implant, orthopedic implant and in-dwelling device surfaces and environmental biofilms in industrial settings. They are shipped in a pack of 5.
910 0050B

24-well All Silicone Flow Channel Plate (0-20 dyne/cm²)
(Special Order Only - contact Sales for lead time)

PART # 910-0116
Research medical device infections, dental implant, orthopedic implant and in-dwelling device surfaces and environmental biofilms in industrial settings. They are shipped in a pack of 5.
910 0050

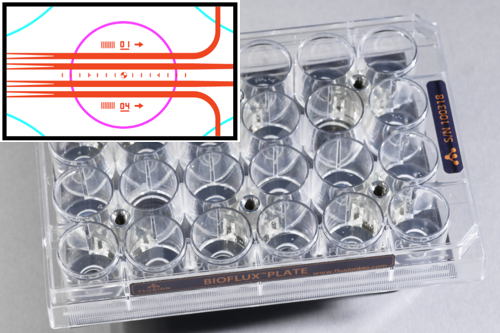

24-well Plate Two Inlets One Outlet (0-20 dyne/cm²)

PART # 910-0050
Used for invasion assays, chemotaxis, competitive biofilm assays, drug dosing, intra-channel comparisons when both inlets are running, wound healing, and cell adhesion/wash assays. They are shipped in a pack of 5.
910 0120

48-well Custom Bottom Plate (0-20 dyne/cm²)
(Special Order Only - contact Sales for lead time)

PART # 910-0119
Enable a full range of experimental protocols utilizing custom substrates by adding any material to the bottom of microfluidic flow chambers. Above the custom substrates flow is laminar but approximately 10x below the flow in the channel region. They are shipped in a pack of 5.
vline gray

Plate Types for BioFlux 1000HT

910 0110

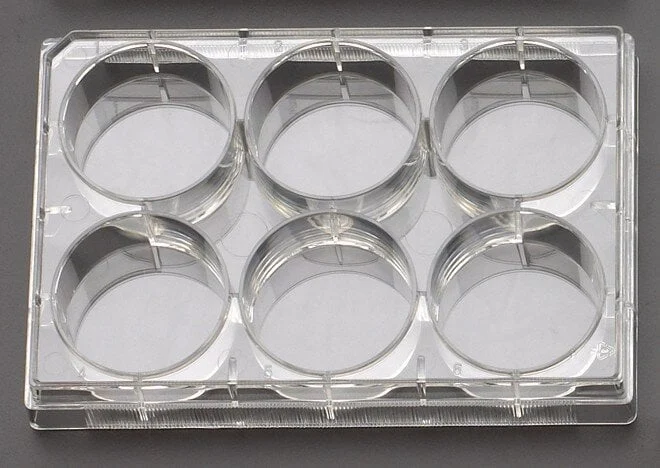

6-well Plate - 3 Assays
(Special Order Only - contact Sales for lead time)

PART # 910-0110
Used for biofilms, cell adhesion experiments and lower shear platelet/thrombosis assays. They are shipped in a pack of 5. These plates can only be used on BioFlux 1000HT .
910 0048

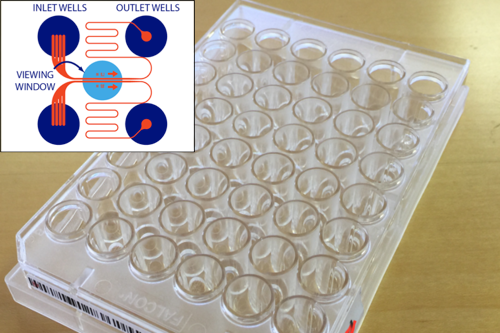

48-well High Shear Plate (0-200 dyne/cm²)

PART # 910-0048
Used for modeling pathological events in the vasculature, ideal for thrombosis and vWF mediated platelet tethering. They are shipped in a pack of 5.
910 0047

48-well Low Shear Plate (0-20 dyne/cm²)

PART # 910-0047

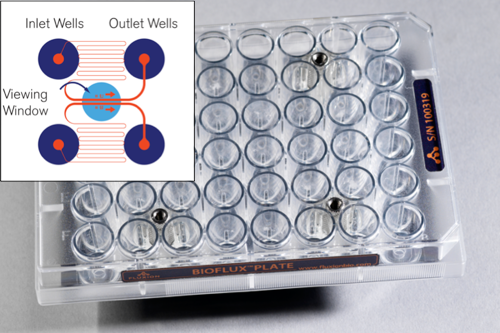

The ideal plate for leukocyte adhesion, transmigration, and biofilm research. They are shipped in a pack of 5 .
910 0051

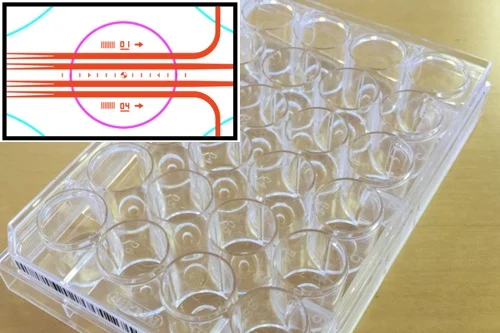

24-well Plate Two Inlets One Outlet (0-20 dyne/cm²)

PART # 910-0051
Used for invasion assays, chemotaxis, competitive biofilm assays, drug dosing, intra-channel comparisons when both inlets are running, wound healing, and cell adhesion/wash assays. Has thinner / shorter serpentine channels. They are shipped in a pack of 5.
910 0120

48-well Custom Bottom Plate (0-20 dyne/cm²)
(Special Order Only - contact Sales for lead time)

PART # 910-0120
Enable a full range of experimental protocols utilizing custom substrates by adding any material to the bottom of microfluidic flow chambers. Above the custom substrates flow is laminar but approximately 10x below the flow in the channel region. They are shipped in a pack of 5.
910 0050B

48-well All Silicone Channel Flow Channels (0-20 dyne/cm²)
(Special Order Only - contact Sales for lead time)

PART # 910-0121
Enable a full range of experimental protocols utilizing custom substrates by adding any material to the bottom of microfluidic flow chambers. Above the custom substrates flow is laminar but approximately 10x below the flow in the channel region. They are shipped in a pack of 5.
910 0050B

24-well All Silicone Channel Flow Channels (0-20 dyne/cm²)

PART # 910-0145
Enable a full range of experimental protocols utilizing custom substrates by adding any material to the bottom of microfluidic flow chambers. Above the custom substrates flow is laminar but approximately 10x below the flow in the channel region. They are shipped in a pack of 5.
